    Loader Drive Axle

    HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

    ZL15J Loader Drive Axle

    Product type: Loader Drive Axle

    Address:NO.257 Kangwang West Road,Feicheng City,

    Address:Shandong Province.

    Tel:+86.538 2095198   2095186   3302973   3302663

    After-sale service:+86.538 3302961   2095189   2095178

    Fittings department:+86.538 2095198 3302651

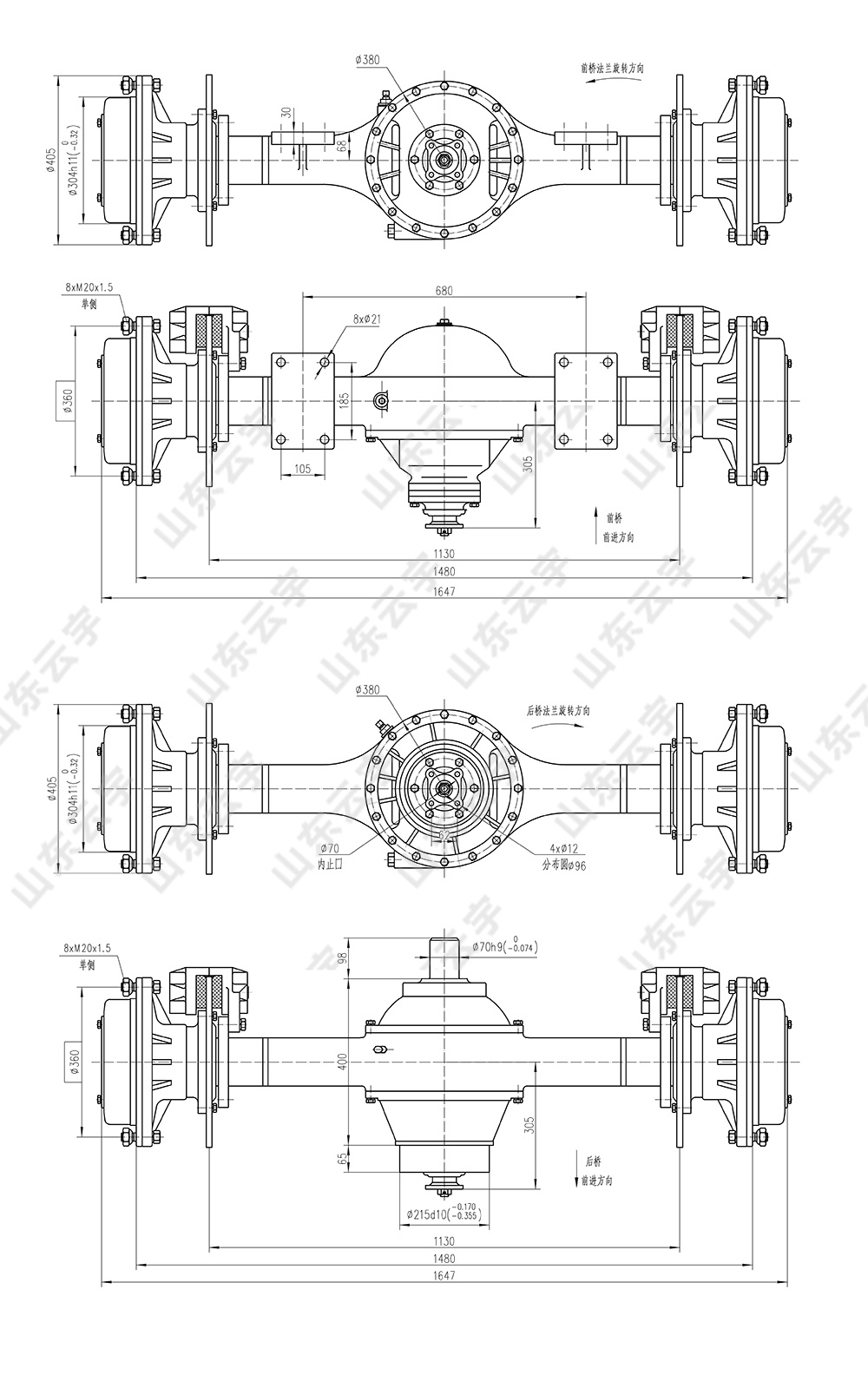

    Main connection dimensions


    Characteristics:

    ● Two-stage decelerating stucture is adopted for the drive axle.

    ● Spiral bevel gears with great bearing capacity,high and high efficiency  are adopted for main tansmission.

    ● The wheel is planetry decelerating structure.

    ● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function.

    ● Cast steel with adequate rigidity serves as material for the axle housing.

    ● The drive axles with either of the two turning directions are provided for users'option.

    ● The brake in clamp-disc braking mode has great braking moment.

    Technical parameter

    Paramerers
    ZL15J
    ZL20F
    Main transmission ratio
    6.667
    6.667
    Transmission ratio at wheel
    3.23
    3.90
    Overall transmission ratio
    21.53
    26.00
    Axle load
    8500Kg
    8500Kg
    Input torque
    900N.m
    900N.m
    Brake
    Number diameter
    2
    Cylinder diameter
    Ф75
    Braking oil pressure
    9.8MPa
    Brake radius
    R167mm
    Brake moment
    4300N.m/pce
