    Loader Drive Axle




    HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle








































    ZL16S Wet-type Braking Drive Axle



                Product type：
                Loader Drive Axle






    Address：NO.257 Kangwang West Road,Feicheng City,


    Address：Shandong Province.


    Tel：+86.538 2095198   2095186   3302973   3302663


    After-sale service：+86.538 3302961   2095189   2095178


    Fittings department：+86.538 2095198　3302651

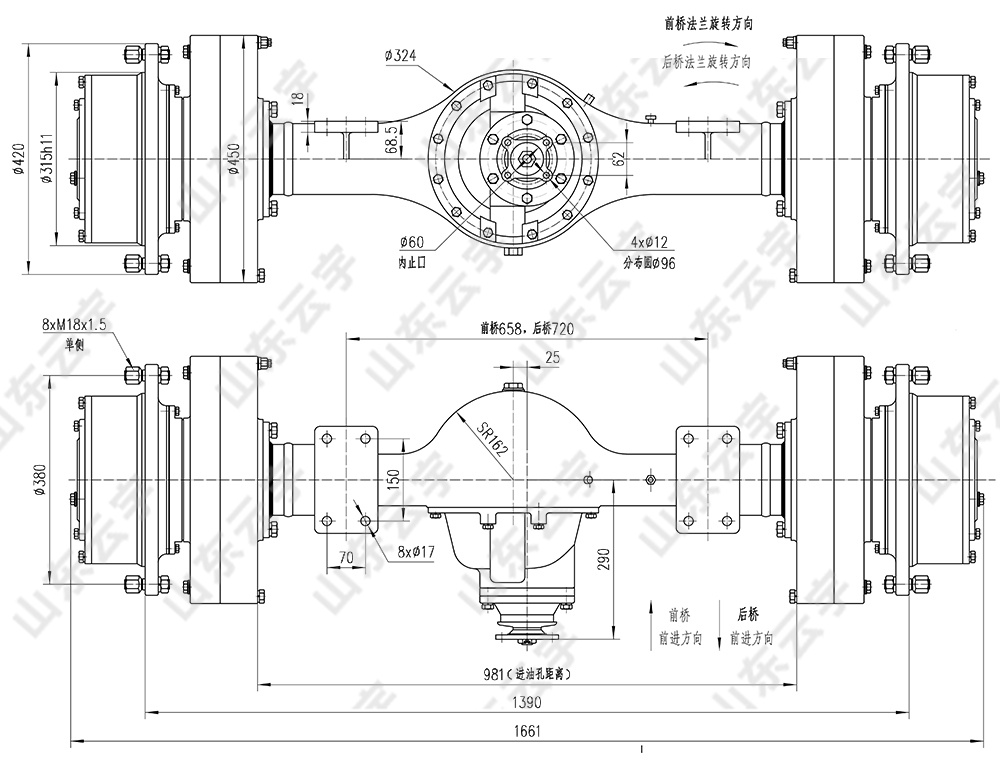

    Main connection dimensions
















    Characteristics:






    ●　The brake in enclosed multi-disc wet-type braking mode,with braking hub,hydraulic pressing,spring release and ideal braking performance,is installed behind the planetary hub decelerating-gears.
    ●　Suitale for ZL16 wheel loader and the engineering machineries in similar conditions.










    Technical parameter








    Main transmission ratio
    5.833
    Transmission ratio at wheel
    4.4
    Total transmission ratio
    25.667
    Maximum axle load
     7500Kg
    Maximum input torque
     785N.m
    Brake
    Braking pressure
     5.5MPa
    Brake moment
     11000N.m/pce
