    ZL15J-1 Loader Drive Axle

    Product type: Loader Drive Axle

    Address:NO.257 Kangwang West Road,Feicheng City,

    Address:Shandong Province.

    Tel:+86.538 2095198   2095186   3302973   3302663

    After-sale service:+86.538 3302961   2095189   2095178

    Fittings department:+86.538 2095198 3302651

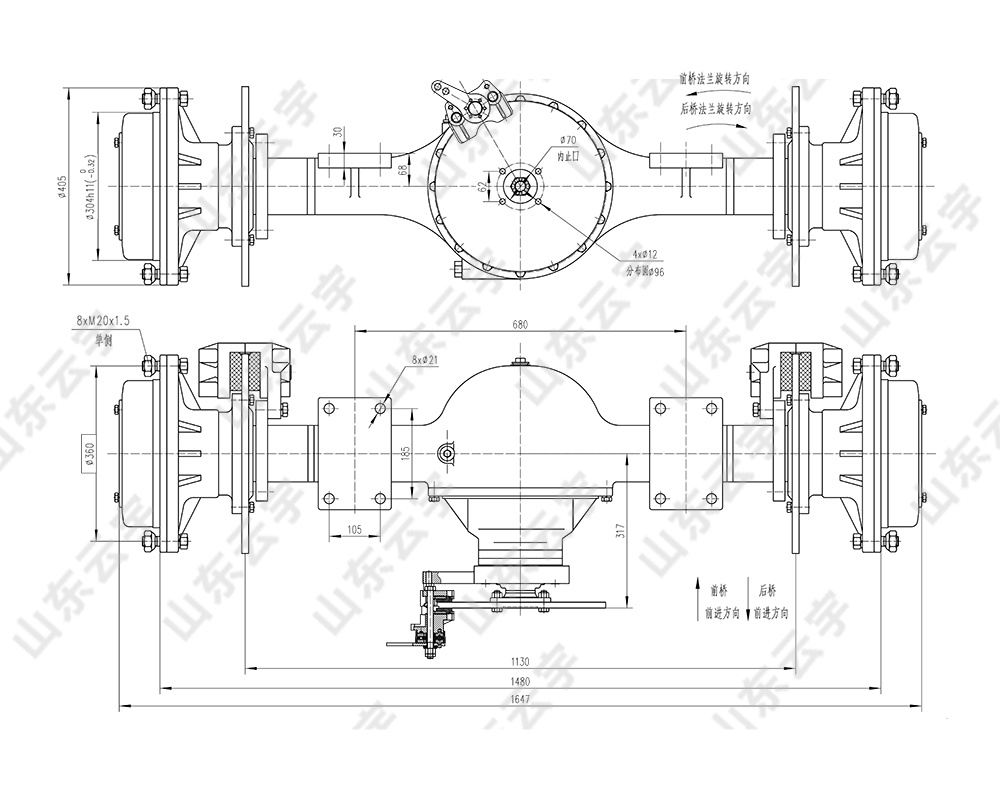

    Main connection dimensions

    Characteristics:

    ● Two-stage decelerating mechanism is adopted for the drive axle.

    ● The spiral bevel gears with great load carrying capacity and high efficiency are adopted for main drive.

    ● The hub is planetary decelerating structure.

    ● The main reducer is equipped with the common bevel-gear differential with simple structure and flexible differential function.

    ● Cast steel with adequate rigidity serves as the material for the axle housing.

    ● The drive axles with either of the two turning directions are provided in accordance with suers' requirements.

    ● The brake in clamp-disc braking mode has great braking moment.

    ● The parking brake is added in the main drive position to realize safe and reliable braking.

    Technical parameter

    Main transmission ratio
    6.667
    Transmission ratio at wheel
    3.23
    Total transmission ratio
    21.53
    Maximum axle load
    8500Kg
    Maximum input torque
    900N.m
    brake
    Cylinder diameter
    Ф75
    Number of cylinders
    2
    Braking oil pressure
    9.8MPa
    Braking radius
    R167mm
    Single-clamp braking moment
    4337N.m
